Univox PLS-X1 UK Loop Amplifier

(Inc VAT)
£350.00 (Exc VAT)

Univox PLS-X1 professional induction loop amplifier has a square area coverage to 130m2  and provides a good listening experience for people with hearing loss in areas including classrooms, meeting rooms and TV lounges. The PLS-X1 has three inputs on the back panel - Balanced XLR, Balanced Phoenix Screw Terminal Block and Unbalanced RCA and Phoenix Screw Terminal Block. The final set up is helped with easy access Front Panel controls for the installer to adjust and LED indicators. The controls are recessed to prevent tampering.

This induction loop amplifier is 8 times more efficient than conventional technology which has enabled a smaller and lighter construction with lower power consumption and less heat dissipation. The amplifier is convection cooled with a physical size of 210mm width, 255mm depth, 44mm height and supplied with a rack mounting kit for 1/2 width 1U housings (19" rack). The unit operates silently, uses less energy, generates less heat and costs less to run than conventional systems. It also has a 5-year return to base warranty.

Summary of Features

  • 1U high and ½ width (19″ rack) for side by side mounting to save rack space

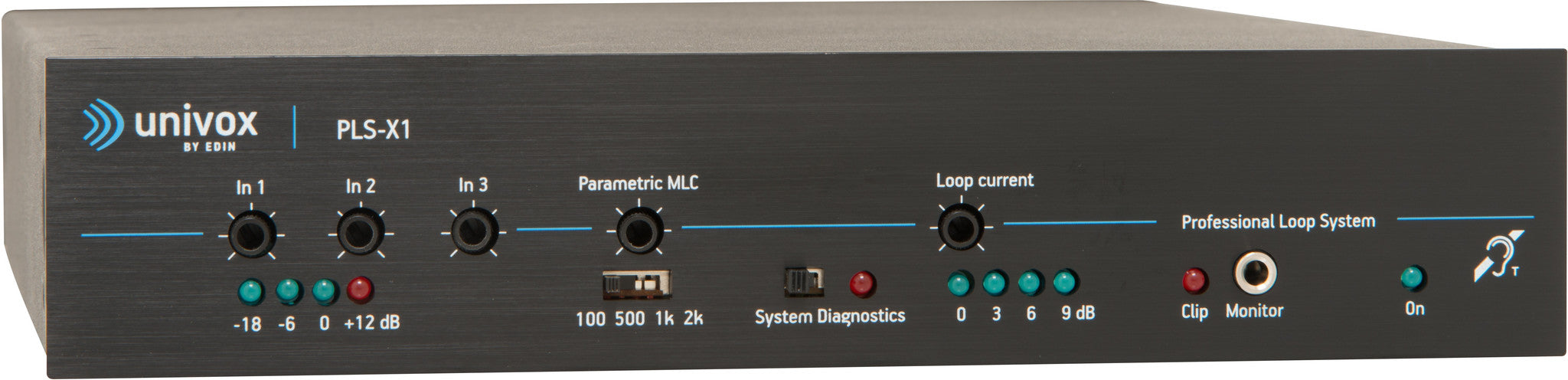

  • Front panel controls for easy installer access
  • Recessed controls to prevent tampering
  • Parametric Metal-Loss-Control for various types of metallic influences in building construction
  • Built-in System diagnostics, to isolate a system malfunction
  • Programmable XLR, RCA and screw terminal input connectors
  • Dual Action AGC for unsurpassed intelligibility
  • Low-frequency masking filter for voice enhancement
  • 50-100 V input
  • Voice alarm system input that overrides all other input signals
  • No internal fans are needed as there is no power leakage. Cooling is due to efficient design
  • 10 W output for connecting a speaker to monitor/verify driver activity
  • Rack mounting kit
  • 5-year return to base warranty
